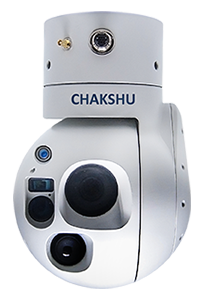

CHAKSHU 118

Utilizing advanced gyroscopic technology, this camera system effectively counteracts any unwanted vibrations or movements, ensuring that the resulting footage remains crisp, clear, and free from distortion.
  • Gimbal with 4 sensors, including LRF
  • Full HD daylight channel with x30 optical zoom
  • IR channel 640p 35mm
  • Laser pointer and laser range finder in an optimised envelope to reduce the volume to the minimum
  • High torque direct drive technology
  • Available options : laser illuminator 808nm (substitution of IR Channel) | laser pointer, laser rangefinder
  • Video processing and recording module
CHAKSHU 118

Technical Specifications:

PHYSICAL

  • Weight : 1300 g
  • Height : 209 mm
  • Min diameter : 95 mm (main body)
  • Max diameter : 140 mm
  • Pan : 360° / Tilt : 360°
  • IP rating : IP64

COMMUNICATION / VIDEO OUTPUTS

  • RS232
  • Daylight : SDI / HDMI
  • Infrared : CVBS / SDI / HDMI
  • Simultaneous channels stream

OTHER FEATURES

  • Geo-tracking
  • Geo-localisation
  • Inner IMU for stabilisation and
    artificial horizon computation
  • High torque direct drive technology
  • Stabilisation <150 μrad

POWER

  • 8V to 36V, typ. 10W max 20W
  • Reverse polarity protection

SENSORS (STANDARD CONFIGURATION)

  • Daylight camera : Full HD Optical zoom 30x (FOV 63.7° - 2.3°)
  • Infrared camera: 640x480 pixels
  • Lens options : 13, 19, 35, 50 mm
  • Available options : laser illuminator 808nm (substitution of IR Channel) | laser pointer, laser rangefinder

COMPLEMENTARY PRODUCTS

  • GCS control station
  • Video processing and recording module
  • Shockproof case

DRI

  • Human size 1.8m X 0.5m
  • EO: >10/3.1/1.5km
  • IR: 1.029/0.309/0.218km (50mm Lens)
  • Vehicle size 2.3m X 2.3m
  • EO: >20/9.5/4.3km
  • IR: 2.352/0.738/0.409km
