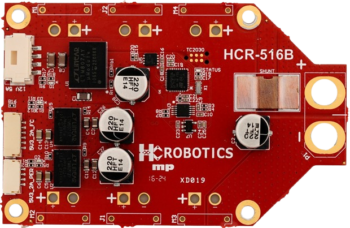

Power Distribution Board HCR-516B
Unlock unparalleled performance and reliability for your drone with the HCR-516B Power Distribution Board from HC Robotics Pvt., Ltd. Designed to handle robust power loads, deliver stable voltage, and provide comprehensive protection, the HCR-516B ensures that all your drone subsystems operate at their peak.
Features:
- Robust Power Handling
- Efficient Voltage Regulation
- Comprehensive Protection Mechanism
- Accurate Current Measurements
- Customizable for Local Needs
- Flexible Customization Options
Highlights:
- Increase your Indigenous Content (IC)
- Local sales, support, and repairs
- Low cost yet with global standards
- Supply Chain Security: We focus on genuine sources
- Extensive pre-delivery validation
Features:
- Robust Power Handling
- Efficient Voltage Regulation
- Comprehensive Protection Mechanism
- Accurate Current Measurements
- Customizable for Local Needs
- Flexible Customization Options
Highlights:
- Increase your Indigenous Content (IC)
- Local sales, support, and repairs
- Low cost yet with global standards
- Supply Chain Security: We focus on genuine sources
- Extensive pre-delivery validation
Power Up Your Drone with Confidence!
- Capable of managing high power loads for consistent and reliable drone performance
- Delivers stable, low ripple output voltage to extend the lifespan of drone components
- Integrated protection mechanisms safeguard against power surges and electrical anomalies
-
Provides precise high and low current measurements digitally communicated via CAN using
the DroneCAN protocol - Tailored to meet the specific requirements of the Indian market with local support available
- Can be customized to meet specific requirements, offering versatility for various applications
Specifications:
- 3x Independent Step-Down Voltage Regulators
- Current and voltage sensing capabilities
- No calibration required
- Real-time power monitoring and diagnostics via DroneCAN protocol
- ArduPilot and PX4 autopilots
- Optional custom firmware development
Specifications:
| Input Voltage | 12 < 60 VDC (3-14S LiPo) |
|---|---|
| Output Voltage | 1x 12 VDC, 5A 2x 5.3 VDC, 2A |
| Current Capacity | 0 to 100Amp Continuous |
| Power Rating | 85 W |
| Regulators | 3x Independent Step-Down Voltage Regulators |
| Safety | Current and Voltage sensing capabilities |
| Battery Monitoring | Drone CAN protocol for real-time power monitoring and diagnostics |
| Weight | 30g |
| Dimensions | 85x55x12 mm |
| Connectors | Clickmate 4POS JST GHS 6POS JST GHS 4POS XT-90 |
| Operating Temperature | -40℃ to +85℃ |
| Compatibility | Customised and PX4 autopilots |
| Support | Optional custom firmware development |
| Main Processor | STM32 |
| Voltage Regulator Step Down | LTM8071 LTM8073 x2 |
