Titanium Mast
Titanium Telescopic Mast is adaptable and versatile structures used in a variety of applications such as military surveillance, broadcasting,
meteorology, emergency services, and photography.
These masts are made up of numerous seamless Titanium tubes that are nestled inside each other and may be extended and retracted as needed. Rapid deployment capabilities,versatility, mobility, and applications in telecommunications, security, broadcasting, and other
industries.
Key Features:
- Ultra-lightweight structure made of Carbon Fibre or Titanium
- Aerodynamically stable even at higher wind speeds
- 3-Axis Gimbaled Electro-Optical Imaging System
- 4K camera with 25x Optical zoom & 12x Digital zoom
- Long-range surveillance with DRI* 9km/5km/2.5km for human sizes targets
- Custom presets for automatic area/perimeter scanning
- Automatic/Manual PTZ controls
- Day & Night operation with NIR filter
- AI based real-time target detection and tracking with Edge computing
- AI based Smart zoom and tracking mechanism
- AI based Smart video recording & Automated alert system
- Supports H.265+/H.265 video compression
- Portable, plug and play system
- Supports variable power input sources – AC/DC
Applications
Modern Warfare Surveillance | Temporary Camp Surveillance
| Search and Rescue Operations | Perimeter Surveillance |
SWAT Operations | Crowd Monitoring | VIP Meetings
Product Specifications:
Camera Features:
- 4K resolution with 8.51 MPixels
- 20x Optical Zoom & 12x Digital Zoom
- 70.2 degrees Angle of view (H)
- Super resolution zoom and Auto focus
- Picture effects – Defog & Visibility Enhancer
- Video output - 2160p @ 29.97
AI Features:
- Inhouse Deep Learning Algorithms
- Person & Vehicle detection
- Smart object tracking
- Real-time AI inference with Edge Computing
- Smart video recording & Immediate event alerts
- Custom object detection available
Gimbal Features:
- Small & Light weight (<500g)
- Pan axis: +330° to -330°
- Tilt axis: +135° to -45°
- Roll axis: +45° to -90°
- Ergonomic design
- Presets: 360° Panning, User defined presets
Features :
| Deployment, Retraction, and locking of mast | Manual/Pneumatic |
|---|---|
| Variable height with telescopic Mechanism | 6 to 40 ft. |
| Deployment time | ≤10 mins |
| No of sections | ≤7 |
| No of Locking clamps | ≤6 |
| Mast –Tubes material | Seamless Titanium |
| Mast–Tube locking Clamp material | Aluminium |
| Mast weight without mounting accessories | ≤7.5 kg’s |
| Tube length | ≤5 ft. |
| Tube thickness | ≤1 mm |
| Top tube ID and OD | ≤24 mm and ≤26 mm |
| Bottom tube ID and OD | ≤58 mm and ≤59 mm |
| Section insertion length one into other | ≤1 ft. |
| Tubes weight | ≤6.5 kg |
| Locking clamp length | ≤120 mm |
| Locking clamps weight | ≤1.2 kg |
| Locking clamp surface finish | Dark olive green anodizing |
| Payload weight or Top load | ≤5 kg |
| Payload mounting platform | Customizable |
| Supports for Mast | Guy wires |
| Guy levels | 2 |
| Guy wire material | Nylon-coated –GI wire (Steel) |
| Guy wire diameter | ≤3 mm |
| Method of guy wires clamping | Manual |
| Guy wire clamp weight | ≤0.15 kg |
| Guy wires mounting on the ground | Anchor pegs 3 |

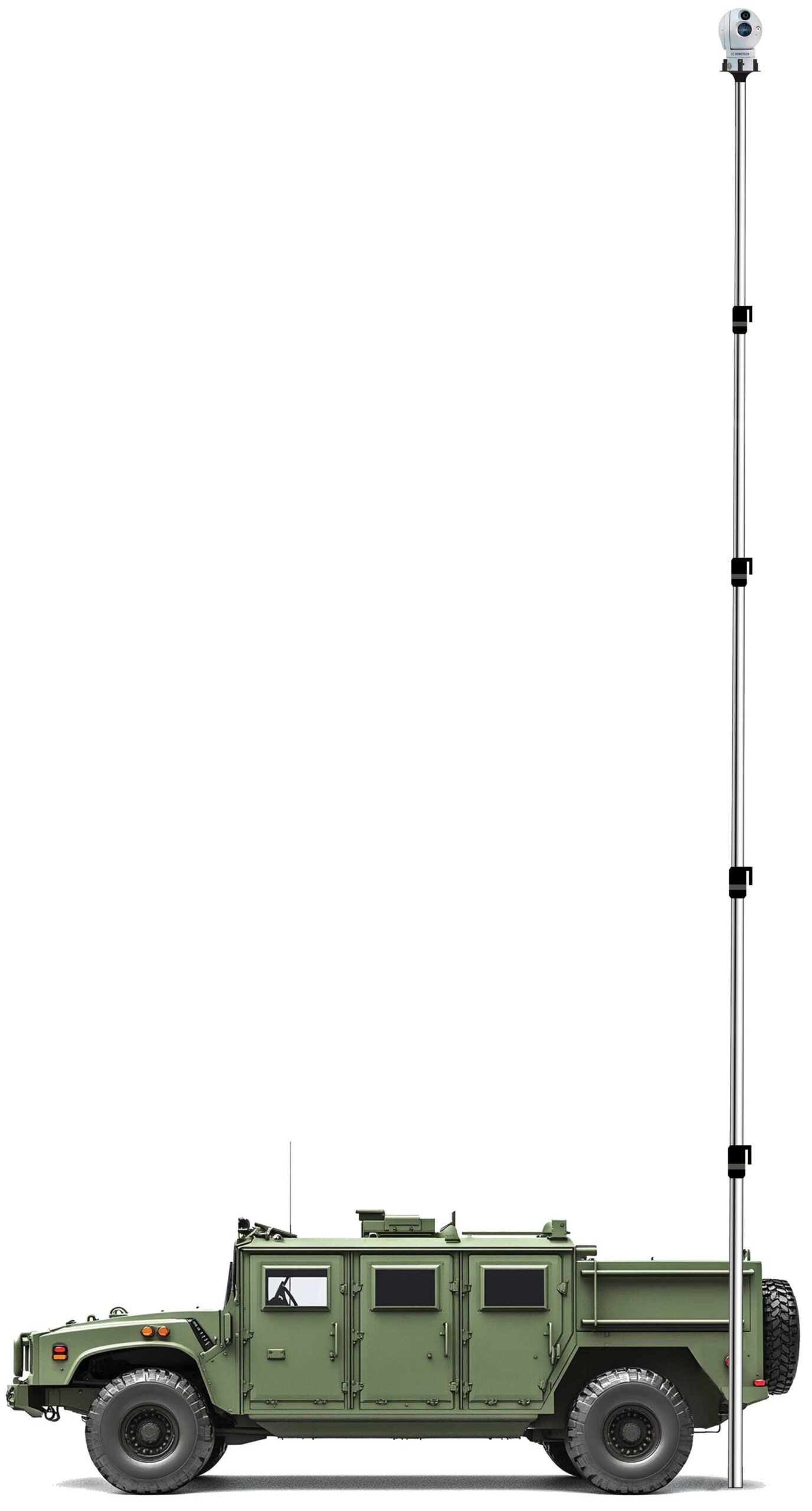

| Mounting type | Ground mounting and vehicle mounting |
| Ground mounting method | Base plate with Anchor pegs 4 qty |
| Base plate weight | ≤7.5 kg |
| Vehicle mounting deployment height | ≤10 ft. |
| S. No | Component /Tools | Ground-mounted | Vehicle-mounted |
|---|---|---|---|
| 1. | Base plate |  |
 |
| 2. | Base shoe | |
|
| 3. | Anchor Pegs (4 nos.) | |
|
| 4. | Guy wire pegs (03 nos.) | |
|
| 5. | Guy wire support clamp | |
|
| 6. | Guy wires | |
|
| 7. | Mast height 8ft to 30ft | |
|
| 8. | Hammer | |
|
| 9. | Antenna as payload | |
|
| 10. | Transportation kits | |
|
| 11. | Customizable payload | |
|
