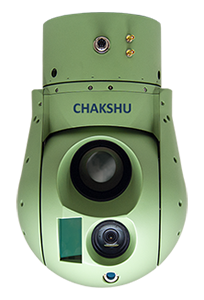

CHAKSHU 318ZR

The Chakshu 318ZR is a compact yet powerful long-range observation gimbal, offering high-performance day and IR channels. It combines a full HD day channel with an impressive optical zoom of up to 30x, alongside dual FOV IR channels of 33mm and 99mm for extended observation capabilities.
  • Weighing 3500 g
  • Long range observation gimbal in compact volume with high performance day and IR channels designed for harsh environments
  • Exceptional image quality and uncooled technology for low maintenance
  • Option for XGA resolution (1024×768 pixels) is available for the IR sensor,
    further enhancing its versatility and performance
  • Laser illuminator 808nm (substitution of IR Channel) and laser pointer,
    laser rangefinder
  • High torque direct drive technology
CHAKSHU 318ZR

Technical Specifications:

PHYSICAL

  • Weight : 3500 g
  • Height : 309 mm
  • Min diameter : 140 mm (main body)
  • Max diameter : 200 mm
  • Pan : 360° / Tilt : 360°
  • IP rating : IP65/IP66 optional

COMMUNICATION / VIDEO OUTPUTS

  • RS232
  • Daylight : SDI
  • IR : CVBS / SDI
  • Simultaneous channels stream

OTHER FEATURES

  • Geo-tracking
  • Geo-localisation
  • Inner IMU for stabilisation and
    artificial horizon computation
  • High torque direct drive technology
  • Stabilisation <150 μrad

POWER

  • 8V to 36V, 20W, max 30W
  • Reverse polarity protection

SENSORS (STANDARD CONFIGURATION)

  • Daylight camera: Full HD 1920x1080p
  • Optical zoom: 30x, FOV 63.7° - 2.3°
  • Infrared camera: LWIR 640x480 pixels (XGA 1024x768p optional)
  • Choice of lenses: Fixed 100/75mm or optical zoom 5x (15-75mm) or dual FOV
  • Available options: LRF, laser pointer

COMPLEMENTARY PRODUCTS

  • GCS control station
  • Video processing and recording module
  • Shockproof case

DRI

  • Human size 1.8m X 0.5m
  • EO: >10/3.1/1.5km
  • IR: 4.3/1.22/0.79km ) (Dual-FOV 33mm & 100mm Lens)
  • Vehicle size 2.3m X 2.3m
  • EO: >20/9.5/4.3km
  • IR: 6.4/1.98/1.27km
